Design 151 5 Bed

Size : 3827 sqft (355 sqm)
Bedrooms : 5
Ensuites : 2
Dressing : 1
Garage : Attached
Storeys : 2

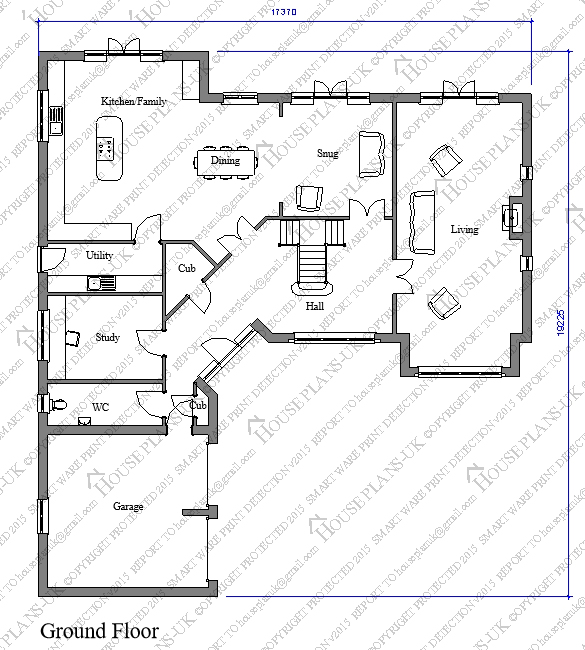

Length : 17370m
Width : 19225m

Lounge
9345mm x 4445mm (max)

Kitchen/Breakfast/Dining
8165mm x 6355mm (max)

Snug
4000mm x 3875mm (max)

Study
4045mm x 2970mm (max)

Utility
4045mm x 1700mm (max)

Cloakroom
4045mm x 1500mm (max)

Entrance Hall
7955mm x 7270mm (max)

Garage
5670mm x 5380mm (max)

Bedroom 1
5385mm x 4865mm (max)

En-suite
4045mm x 1700mm (max)

Dressing
4045mm x 2475mm (max)

Bedroom 2
5395mm x 4525mm (max)

En-suite 2
4045mm x 2040mm (max)

Bedroom 3
4025mm x 4000mm (max)

Bedroom 4
4495mm x 4455mm ( max)

Bed 5
4750mm x 4470mm (max)

Family Bathroom
4015mm x 2600mm (max)

First floor Landing
9085mm x 7280mm (max)

Balcony
4720mm x 1200mm (max)

Specifications:
Total floor area: 3827 sqft (355 sqm)
Bedrooms: 5
En-suites: 2
Dressing: 1
Utility
Kitchen/breakfast area
Snug
Study
This architectural contemporary designed house is a traditional but modern day choice, as it provides very open spacious accommodation.

Pre- planning

Planning approval

Building regs approval

With all our designers using the latest 3d model software, we have the advantage of being able to easily provide modifications required to suit you and your surroundings, we will include any minor modification within our planning packages.

Purchase : Pre-planning drawings - total cost £9.99

Purchase : Planning drawing approval - total cost £195.00

Purchase : Building regs approval - total cost £550.00

Purchase : Pre-planning, planning approval and Building regs- total cost £650.00
