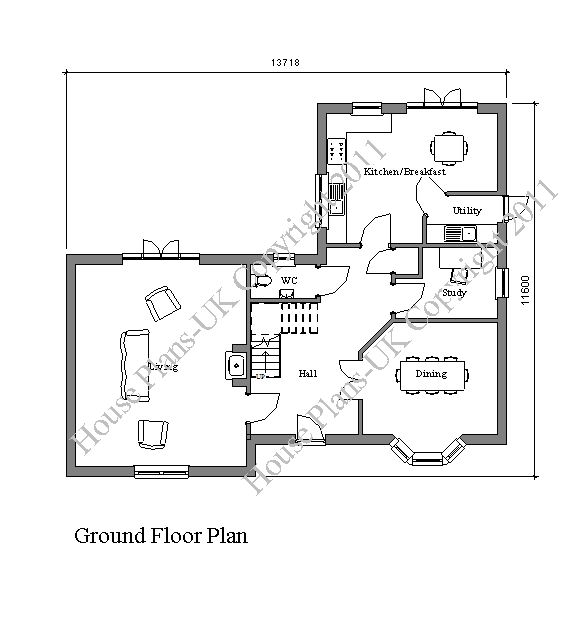

Design no 133 4 Bed

Size : 2147sqft (199sqm) Attic 483sqft (44sqm)
Bedrooms : 4-5
Ensuites : 2
Garage : Detached
Storeys : 2-3
Length : 13708m
Width : 11600m

6362mm x 6300mm (max)

Kitchen/ breakfast
5300mm x 4050mm (max)

4200mm x 3490mm (max)

3175mm x 2205mm (max)

2200mm x 1510mm (max)

2050mm x 1075mm (max)

Entrance Hall
5825mm x 4375mm (max)

Bedroom 1
5300mm x 2960mm (max)

En-suite 1
2980mm x 1400mm (max)

Dressing room
2980mm x 1775mm (max)

Bedroom 2
4050mm x 3350mm (max)

En-suite 2
3110mm x 1850mm (max)

Bedroom 3
4300mm x 2925mm (max)

Bedroom 4
3240mm x 2220mm ( max)

En-suite 3
2900mm x 1630mm (max)

Family Bathroom
4300mm x 1900mm (max)

First Floor Landing
6790mm x 3295mm (max)

Bed 5/Games
7760mm x 3405mm (max)


Total floor area: 214sqft (199sqm) Attic 483sqft (44sqm)
Bedrooms: 4-5 with Attic
Kitchen / breakfast area
Living room

Dining room

Dressing rooms 1

This architectural traditionally designed house provides very spacious accommodation with all the needs for any modern day family. Optional attic if extra space required

Pre- planning

Planning approval

Building regs approval

With all our designers using the latest 3d model software, we have the advantage of being able to easily provide modifications required to suit you and your surroundings, we will include any minor modification within our planning packages.

Purchase : Pre-planning drawings - total cost £8.99

Purchase : Planning drawing approval - total cost £149.00

Purchase : Building regs approval - total cost £349.00

Purchase : Pre-planning, planning approval and Building regs- total cost £449.00
